Injectoare ACW-01 3cyl
Produs nou

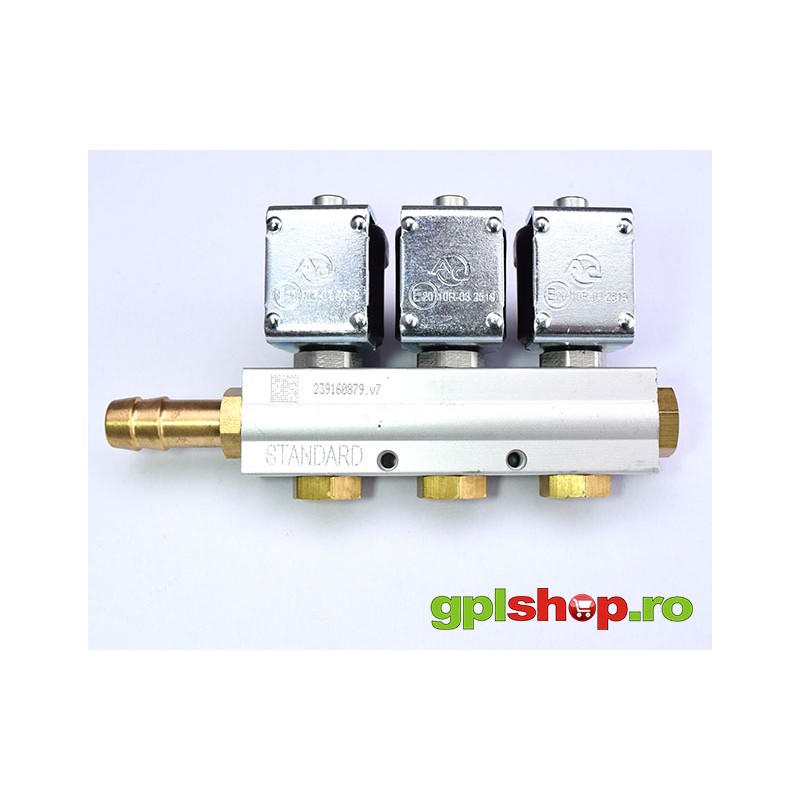

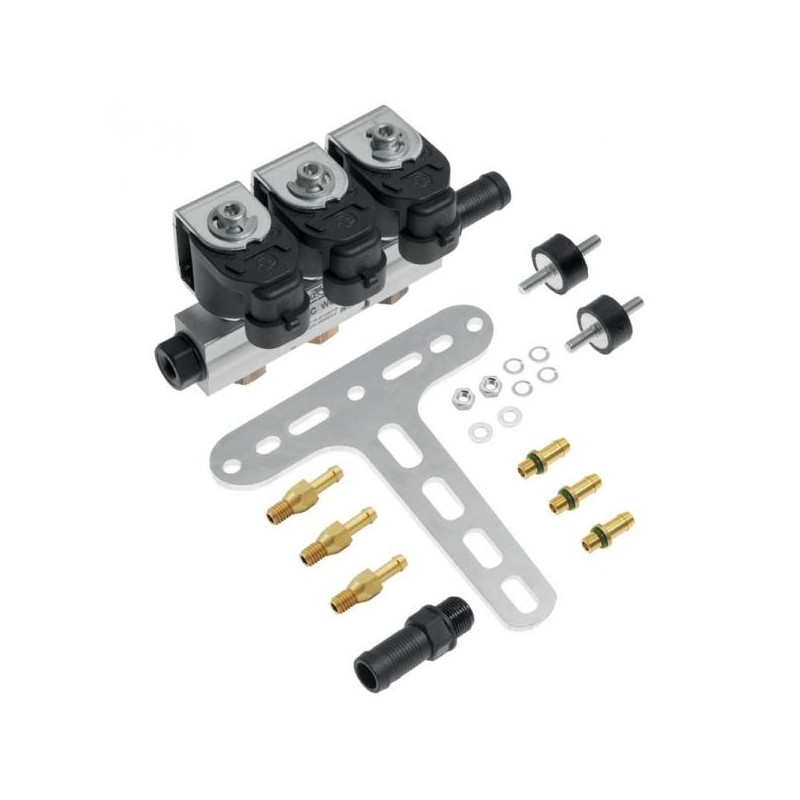

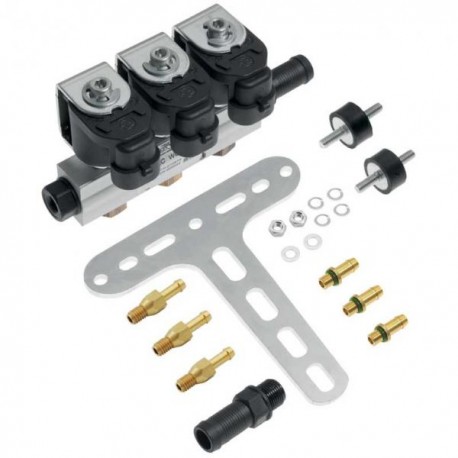

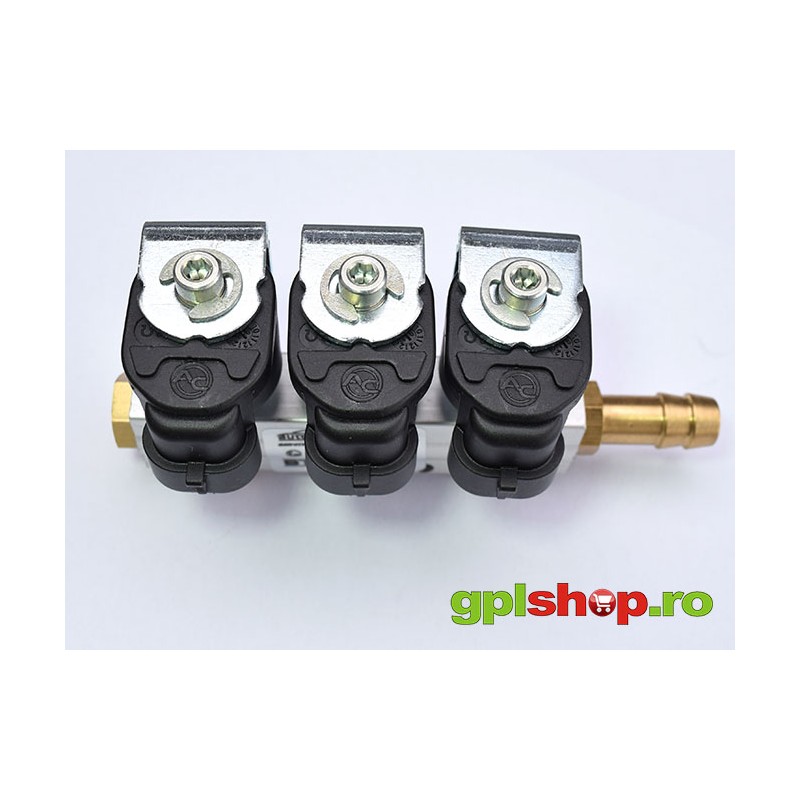

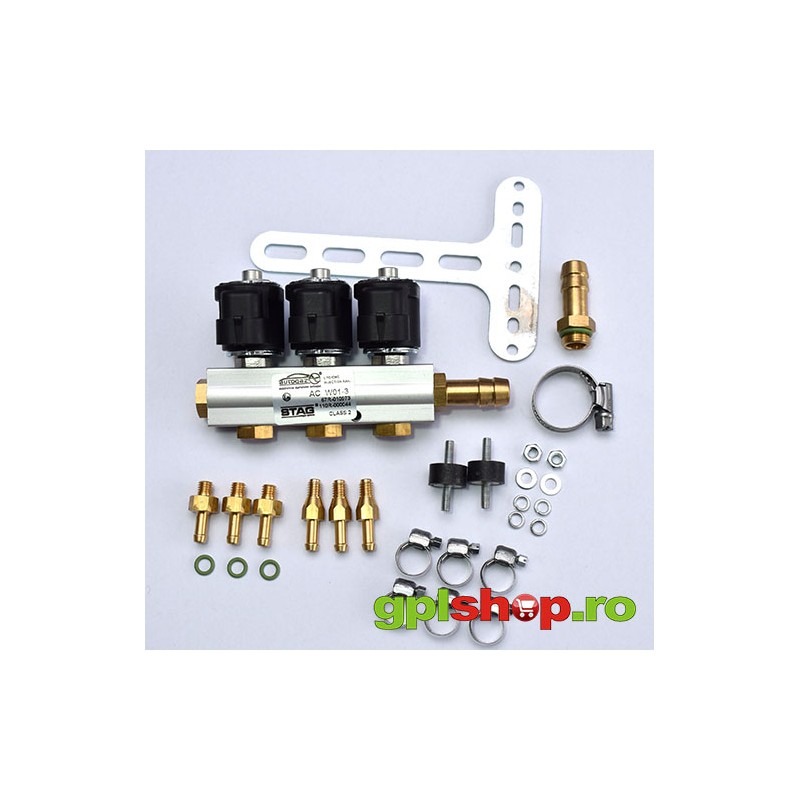

Injectoare ACW-01 3cyl
Rampa completa de 3 injectoare AC Stag
Doar la comanda in 7-10 zile
Informatii
Injectoare ACW-01 3cyl
Rampa completa de 3 injectoare AC Stag
Specificatii tehnice
| Max. gas flow at 1.2 bar [l/min] | 125 |
| Opening time at 1.2 bar [ms] | 2,3 |
| Closing time at 1.2 bar [ms] | 1,4 |
| Operating pressure [bar] | 0,95 ÷ 1,2 |
| Max. operating pressure [bar] | 4,5 |
| Performance range [HP/cylinder] (adjustable with nozzles) | 3,5 ÷ 45,0 |
| Performance range [kW/cylinder] (adjustable with nozzles) |
2,6 ÷ 33,1 |
| Coil resistance [Ω] | 2,0 +/- 0,1 |
| Supply voltage [V] | 12 ÷ 16 |
| Operating temperature [°C] | -20 ÷ +120 |
| Gas inlet – stub pipe [mm] | Ø 12 |
|
Gas outlet – stub pipe [mm] |
Ø 6 |
|
Service life [km] |
100 000 200 000 |
| Overall dimensions with stub pipes [mm] | |
| Length | |
| 4 cylinders | 150 |
| 3 cylinders | 123 |
| 2 cylinders | 96 |
| Width × Height (4, 3 or 2 cylinders) | 45 x 79 |
| Weight with nozzles [g] | |
| 4 cylinders | 480 |
| 3 cylinders | 360 |
| 2 cylinders | 240 |
Omologare: E8 67R-01 0973, E8 110R-00 0044
