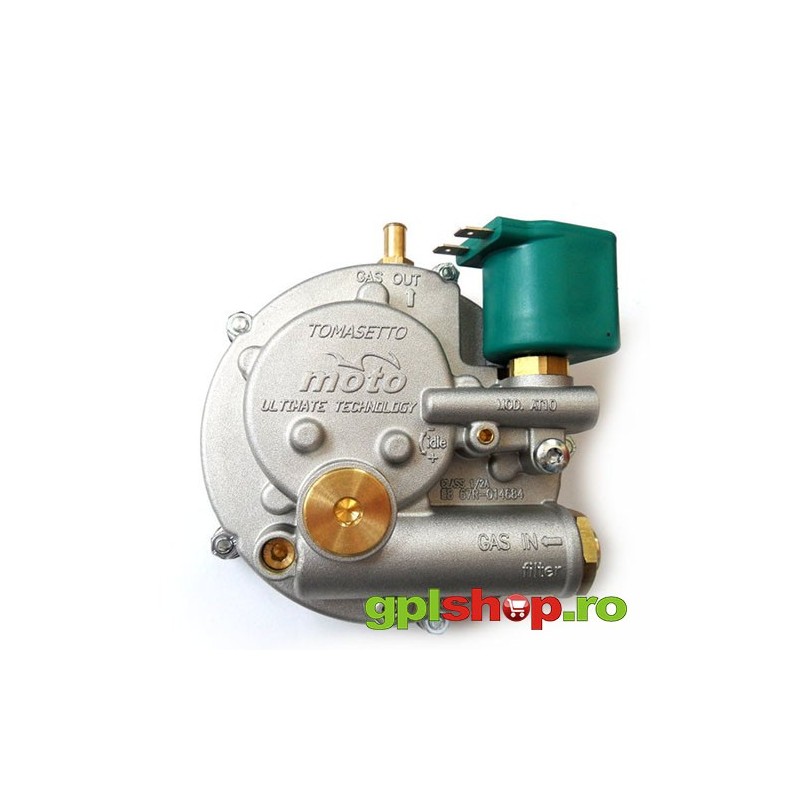

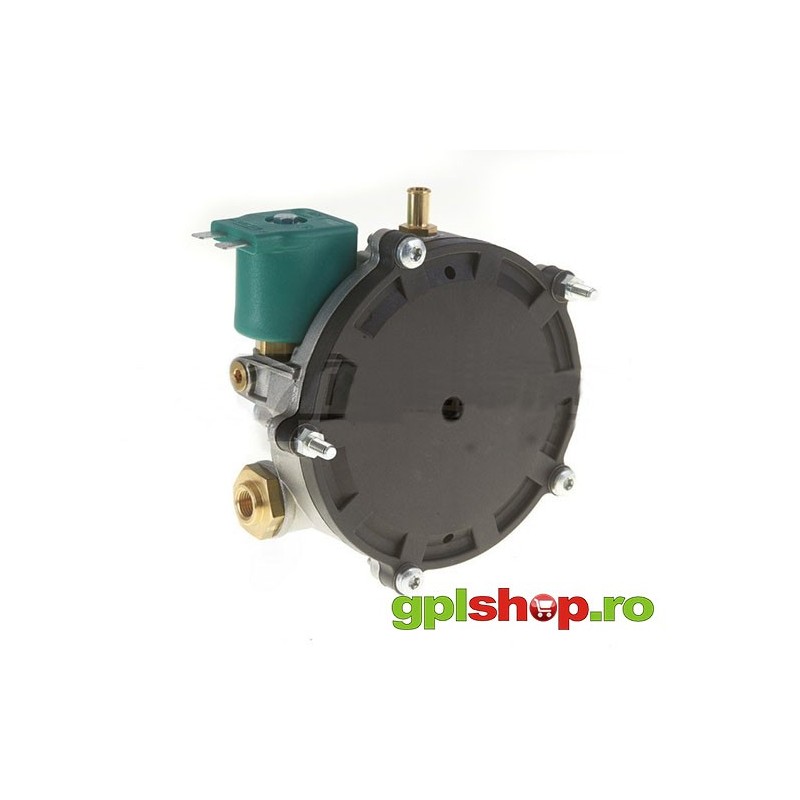

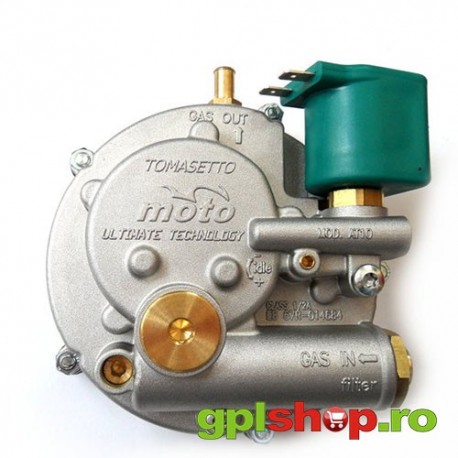

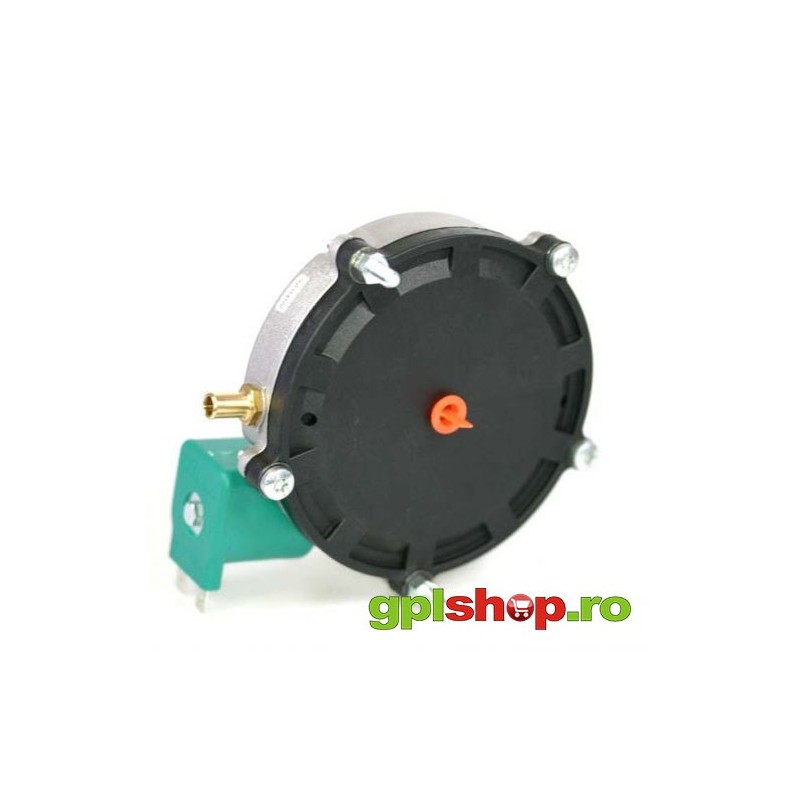

Tomasetto AT10 Moto
LPG reducer model AT10 is a 2 stages electronic reducer, suitably developed for applications on motorbikes and small vehicles, with LPG withdrawal in vapour phase (this reducer is not provided with heating circuit).
Compact and reliable, this reducer is homologated as per the ECE 67R-01 and is equipped with an integrated solenoid valve, that reduces overall costs and hindrance, permitting an easier and faster installation.
Developed mainly for the Asian markets, this reducer is designed exclusively for two-wheeler and small three-wheelers applications.
| VERSION | AT10 ELECTRONIC |
| Type of product | LPG reducer for small motorbikes and 3-wheelers in vapour phase |
| Material | Die-cast aluminium body |
| Weight | 0.65 kg |
| Dimensions | 130x120x60 mm |
| Max inlet pressure | 3 MPa |
| Outlet pressure | depending on the mixer |
| Coil voltage | 12 V DC |
| Coil power | 3 W |
| Coil connection | Fast-on (amp upon request) |
| Inlet connection | M 10x1 6 mm pipe |
| Outlet connection | Fixed fitting d.8 mm |
| Engine power * | up to 15 kW |
| LPG flow rate | 4 kg/h |
| Working temperature | -20 °C / +120 °C |
| * with T>-10 °C; lower temperatures decrease reducer's efficiency; in case of permanently higher temperatures, the reducer can be used also on more powerful engines |
