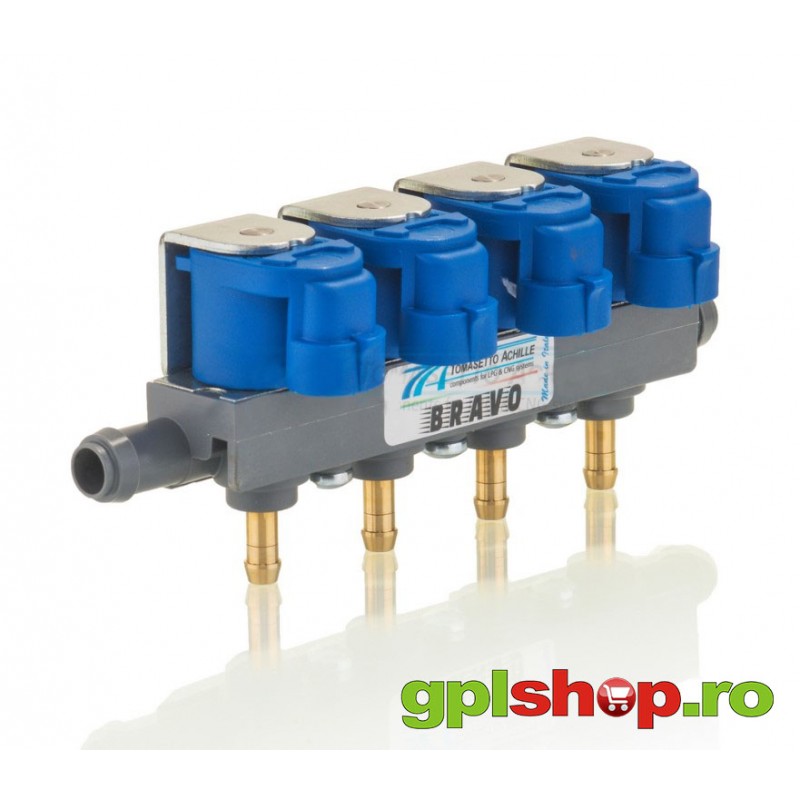

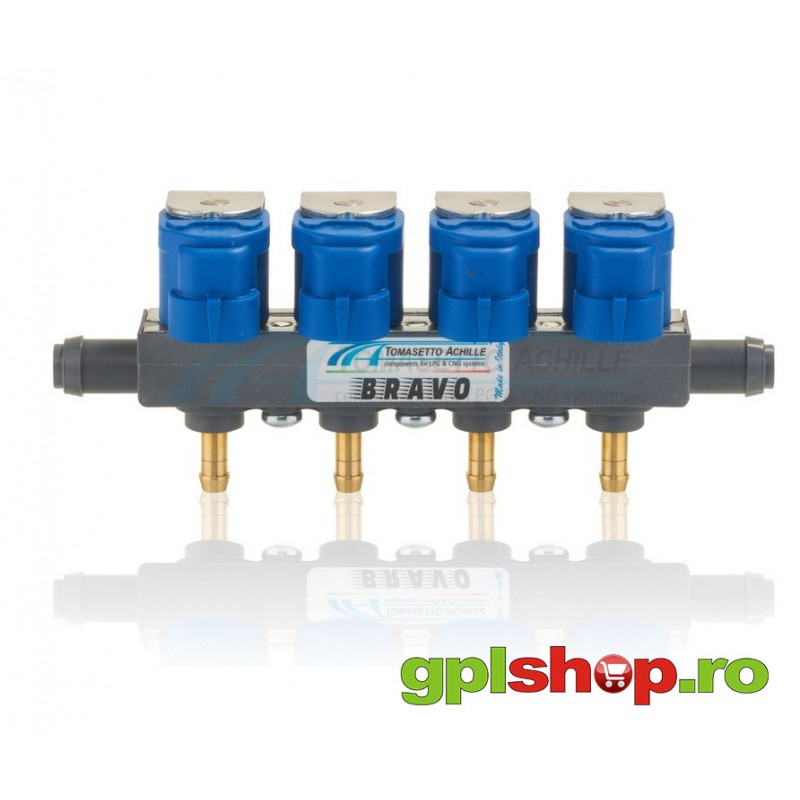

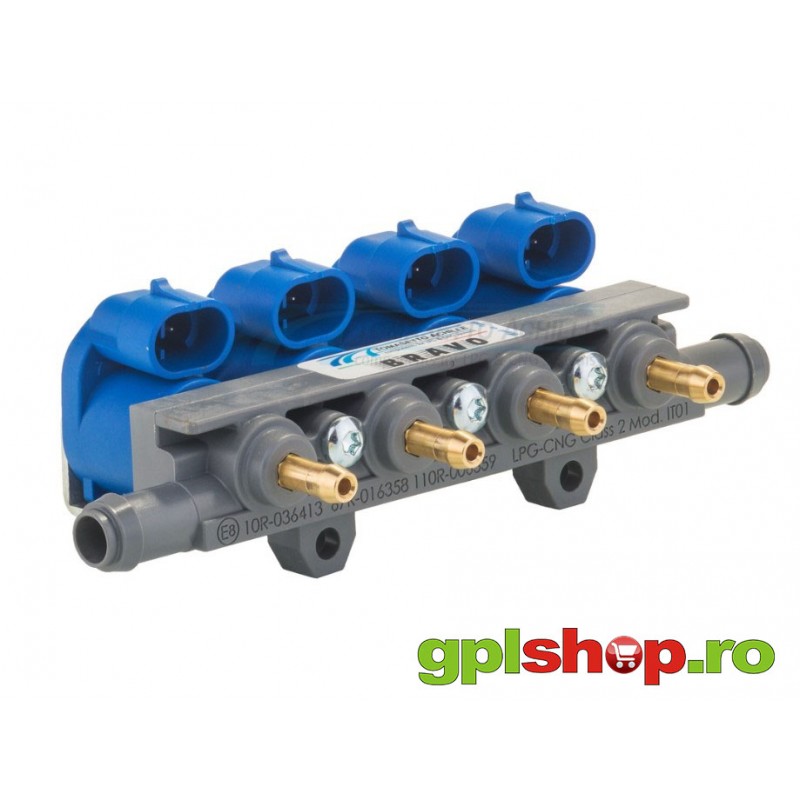

Injector rail Tomasetto

Reference: TOM IT01

Condition: New product

290,00 lei

Quantity

Customer ratings and reviews

Nobody has posted a review yet

in this language

Rate it

Injector rail Tomasetto. Used on Tomasetto AC-STAG LPG systems

IT01 PLUS RAIL INJECTOR	2 Ohm	1,5 Ohm	3 Ohm
Working pressure	From 0.5 to 2.5 bar gauge	From 0.5 to 2.5 bar gauge	From 0.5 to 2.5 bar gauge
Max pressure	7 bar gauge	7 bar gauge	7 bar gauge
Power supply	12÷14 V	12÷14 V	12÷14 V
Coil resistance	2 ± 5% Ω@20°C	1,5 ± 5% Ω@20°C	3 ± 5% Ω@20°C
Driver	Peak and hold [PWM]	Peak e Hold [PWM]	Peak e Hold [PWM]
Peak current	6A	6A	4A
Hold current*	1.1 A (PWM 10 kHz@DC20%)	1.1 A (PWM 10 kHz@DC20%)	1.1 A (PWM 10 kHz@DC20%)
Complete opening time*	2.8 ms@12V	2,4 ms@12V	3.1 ms@12V
Closing time*	2.4 ms (PWM 10kHz@DC20%)	2.4 ms (PWM 10kHz@DC20%)	2.4 ms (PWM 10kHz@DC20%)
Peak current time*	3.5 ms@12V	3.1 ms@12V	3.8 ms@12V
Minimum injection pulse*	3.2 ms@12V	2.7 ms@12V	3.3 ms@12V
Suggested minimum injection time at idle condition	3.5 ms@12 V	3.1 ms@12 V	3.6 ms@12 V
Static flow rate @ 1 bar (for each injector)	115 Nl/min in air	115 Nl/min in air	115 Nl/min in air
Static flow rate @ 2 bar (for each injector)	170 Nl/min in air	170 Nl/min in air	170 Nl/min in air
Body material	PPS + 40% GF	PPS + 40% GF	PPS + 40% GF
Calibrated nozzle material	Brass	Brass	Brass
Electrical connector type	AMP superseal 150	AMP superseal 150	AMP superseal 150
Operating Temperature range	-20/+120 °C	-20/+120 °C	-20/+120 °C
Inlet gas fitting	Rubber hose d.12 mm	Rubber hose d.12 mm	Rubber hose d.12 mm
Outlet gas fitting	Rubber hose d.6 mm	Rubber hose d.6 mm	Rubber hose d.6 mm
* values depending on the electric response time of the ECU driver
